Corghi Exact 70 Wheel Aligner with 8 CCD Camera Sensor Heads - Model 33107801 | Professional Wheel Alignment for Auto Shops & Car Service Centers
$9270.25
$16855
-45% OFF
Free shipping on all orders over $50
7-15 days international
17 people viewing this product right now!
30-day free returns
Secure checkout
22894959
Guranteed safe checkout
Description

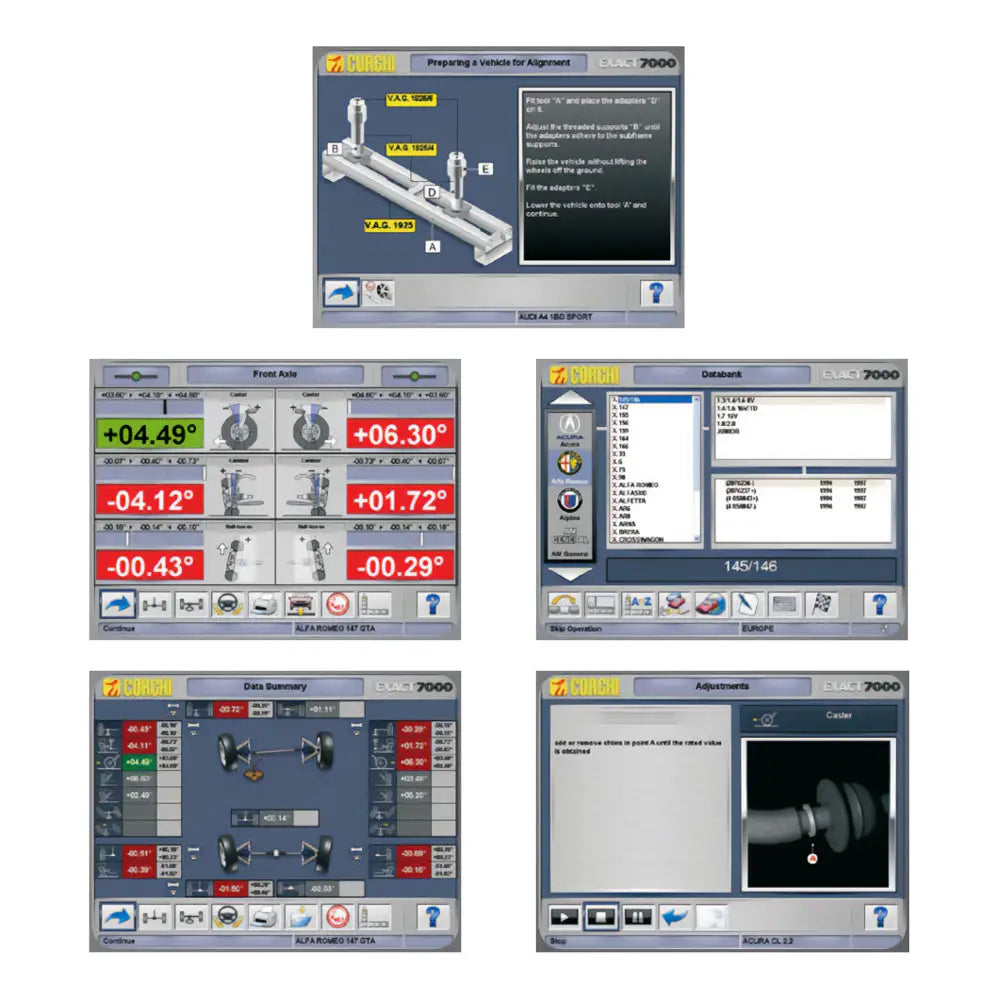

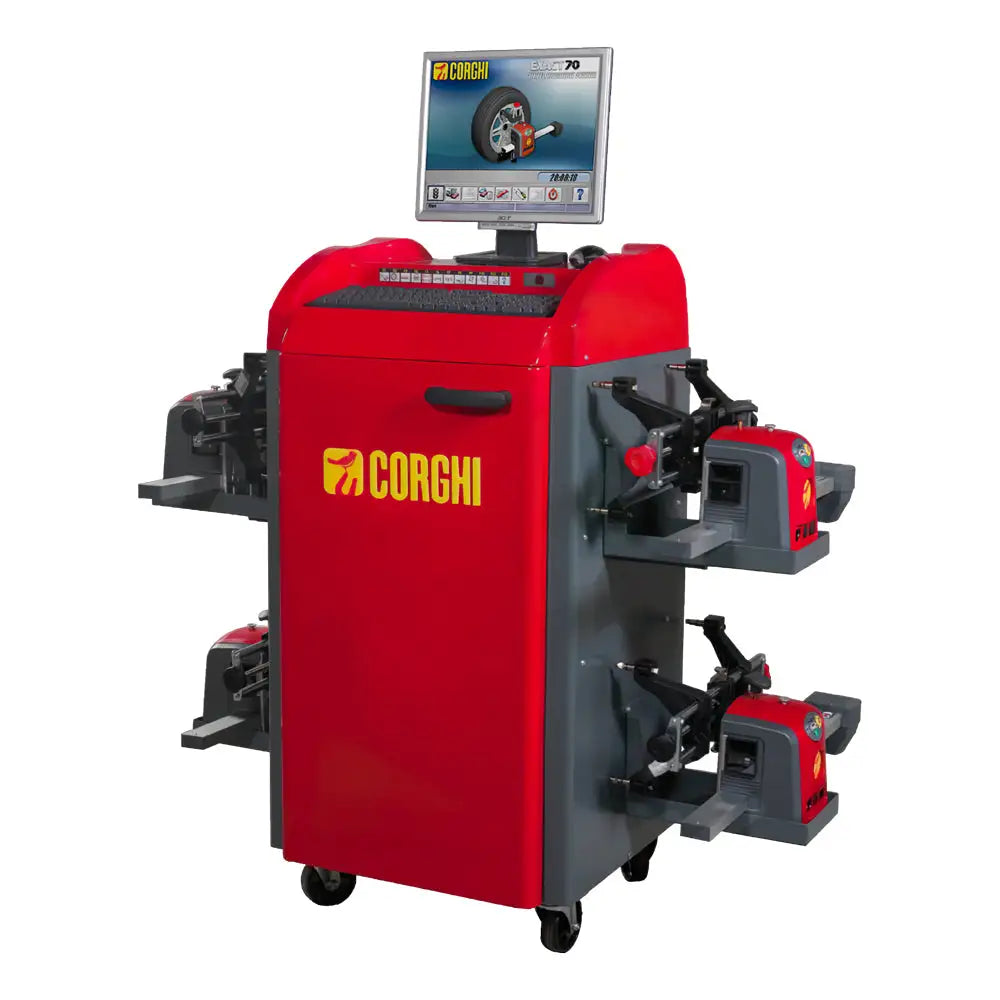

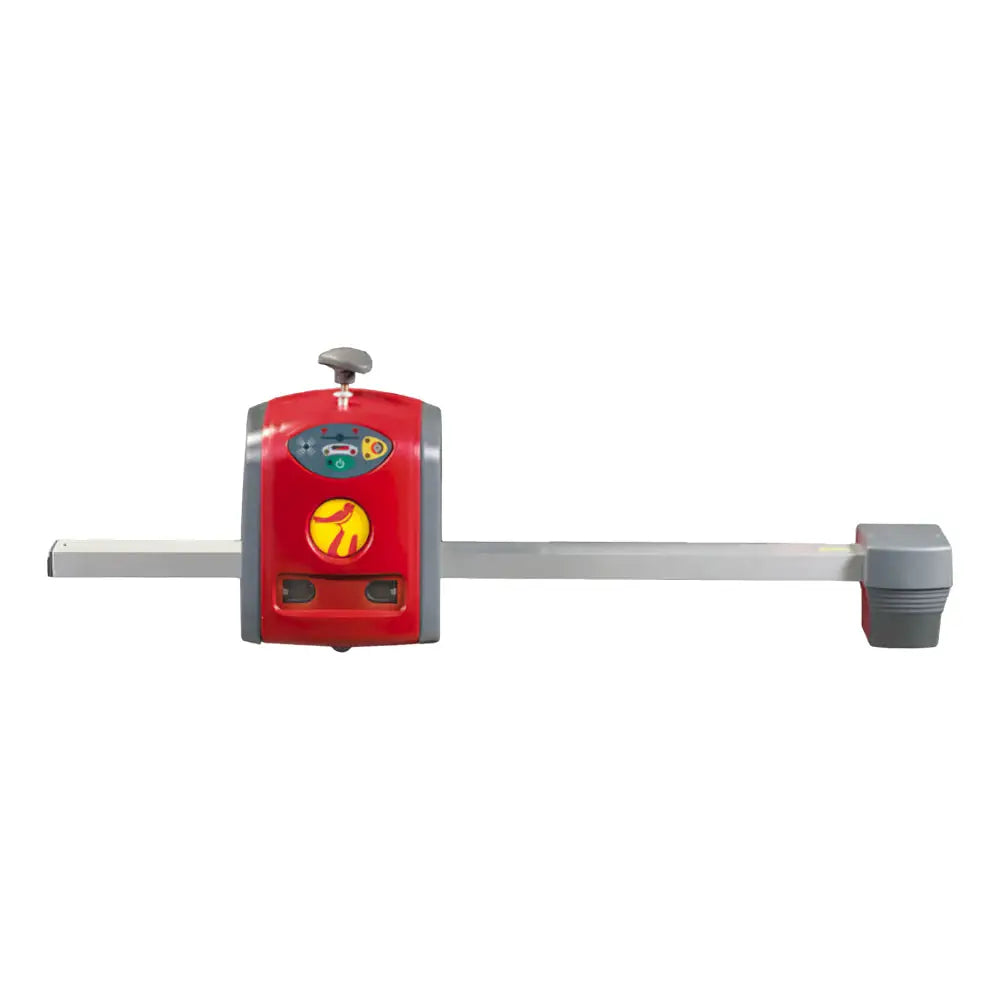

If you are looking for top-notch wheel alignment equipment, the Corghi Exact 70 is your solution. This computerized system features 8-CCD-camera sensor heads, available in both wireless and cable versions. With a spacious internal storage compartment for protecting your PC and printer, along with a document wallet and professional-grade PC, it caters to all your alignment needs. The EXACT PLUS program included is designed for the most demanding professionals, offering clear, intuitive graphics, user-friendly operation, and complete customization options to ensure precise alignment every time.
Features:
- Manual toe curve measurement and adjustment procedure
- Push-type, 2 and 3 point, single-sensor ROC
- Car and van databank with 18,000+ vehicles
- Optional truck and bus databanks (3,000+ vehicles)
- Easy Caster: quick caster measurement, no brakes needed
- Animated tutor guides vehicle alignment preparation
- Quick Check: complete 2-head front axle measurement
- Cradle Adjustment for easy alignment
- Quick job record data input feature
- Continuous sensor calibration checking assures accuracy
- Truck and trailer procedure available as optional feature
- Adjustment help via schematic slides or animations (optional)
Specs:
Measuring Ranges- Total Toe: ± 48°
- Half Toe: ± 24°
- Camber: ± 10°
- Caster: ± 30°
- King Pin: ± 30°
- Set Back: ± 22°
- Thrust Angle: ± 10°
- Steering Angle: ± 20°
Power Supply
- Central Unit: 90-260 Vca / 50-60 Hz / 1ph
- Central Unit Consumption: 0.4 kW
- Dimensions
- Sensors: 800mm x 135mm x 210mm
- Width x Depth x Height: 800mm x 630mm x 1710mm
- with Sensors: 1350mm x 1320mm x 1710mm
Ref No.
Exact 70 Plus II
Ref Name
Vehicle Alignment System
Truck & Trailer Alignment System
Application:
Auto Repair ShopsVehicle Service Centers
Fleet Management Companies
Trucking Companies
Automotive Workshops
Tire Service Centers
Commercial Fleets
