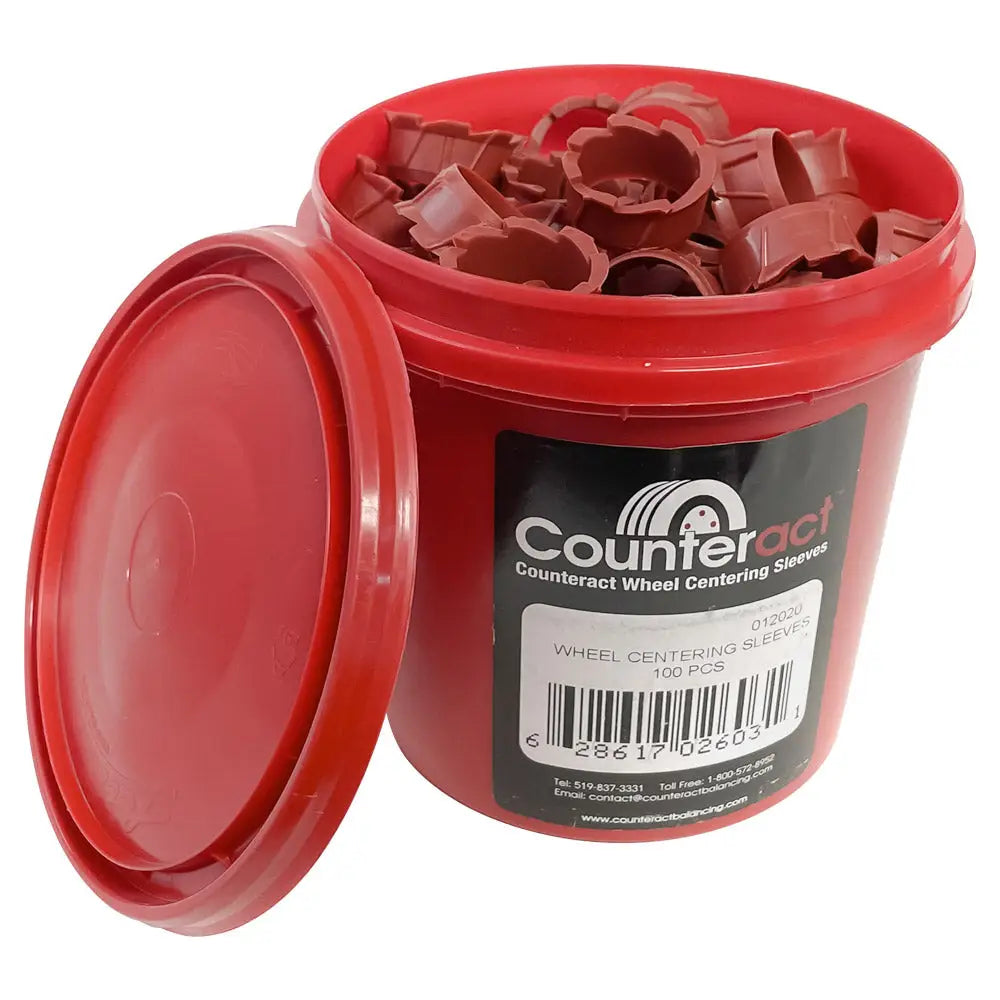

Counteract Centering Sleeves WCS C - Pack of 100 for Precision Alignment in Industrial Machinery & Automotive Applications

What is a Counteract Centering Sleeve?

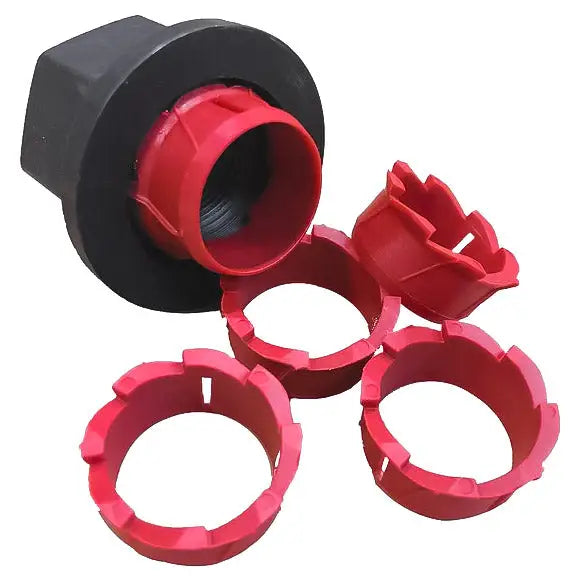

A Counteract Centering Sleeve is a patent-pending wheel centering system that works with your OEM style two-piece flange nuts. The unique self-sizing & non-corrosive inserts are made to take up the gap between the 22mm stud and the 26mm wheel opening, re-aligning the wheel to the TRUE CENTER of the hub bearing.

Each hub piloted wheel uses pilot pads that have tolerances intended initially from the factory, allowing some wheel movement; as well, these pilot pads can wear down over time, causing an offset between the wheel and the hub bearing. Counteract Wheel Centering Sleeves are designed to fill in that gap, providing a truly centered wheel.

Why Choose A Counteract Centering Sleeve?

At a fraction of the cost of competitive brands, Counteract Centering Sleeves have proven not to affect clamping force or torque, ensuring the safety of your wheel end. Using our sleeves, they have proven to counteract runout that can lead to dangerous wheel “clocking” and potential wheel-off conditions.

Counteract Centering Sleeve services all hub-piloted wheels with 22mm studs, including Steer Wheels, Drive Wheels, Steel Wheels & Aluminum Wheels. Each wheel must use a minimum of three sleeves, positioned in a triangle formation; however, five is always recommended for extra security.
