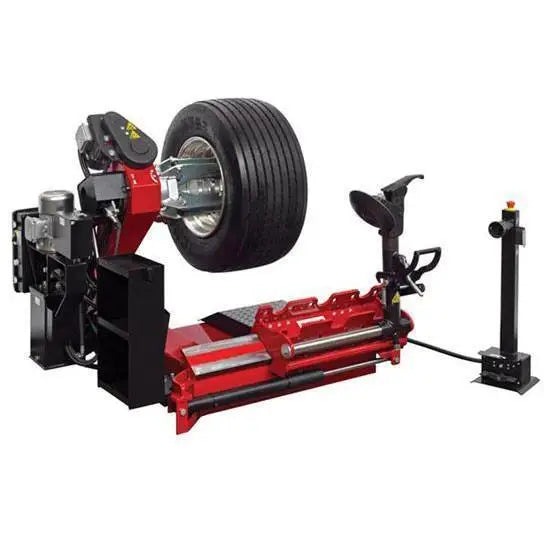

Coats CHD 6330 Heavy Duty Truck Tire Changer Machine - 230V 1PH (13-27) for Commercial Auto Repair Shops & Fleet Maintenance
$10337.25
$18795
-45% OFF
Free shipping on all orders over $50
7-15 days international
10 people viewing this product right now!
30-day free returns
Secure checkout
39551625
Guranteed safe checkout
Description
Ideal for medium to high-volume shops, this 1-phase tire changer is perfect for handling a wide range of truck and off-road tires. With its compact design, it fits well in shops where space is limited but versatility is key. The four-jaw chuck makes clamping a variety of rims easy and efficient, while the floating jaws provide a secure grip on different wheel types. Designed for businesses that require reliability and ease of use, it's a solid choice for shops servicing commercial trucks, construction vehicles, and heavy equipment.
Features:
- Four-jaw chuck allows fast and easy clamping of virtually all rim styles, including de-mountable, reverse disc, standard disc, and off-road style wheels
- Floating jaws match wheel contours for excellent grip and safety
- Solid, single-piece frame for added capacity and reliability
- The portable wired control unit lets you work from the best angle at all times
- Handles rims from 13in to 27in and tires up to 63in in diameter and 30.5in wide
- Free Installation and Training
Specs:
Max. Tire Diameter: 63 in (1600 mm)Max. Tire Width: 30.5 in (780 mm)
Rim Diameter Range: 13 in -27 in
Electric: 230V 1Ph (80063301PH)
Hydraulic Motor Power: 2.0 HP (1.5 kW)
Chuck Rotation Motor Power: 1.5-2 HP (1.1-1.5 kW)
Max. Chuck Torque: 4816 ft/lbs (3552 Nm)
Clamping Power: 7407 lbs (3360 kg)
Chuck Rotation Speed: 8-16 rpm
Max. Wheel Weight: 3300 lbs (1500 kg)
Acoustic Pressure: less than 70dBA
Single piece frame with solid floor-plate: Yes
Tool Arm Positioning: Manual
Tool Head Positioning: Manual
Max. Overall Dimension: 69 in (w) x 68.5 in (d) x 50 in (h)
Weight with Standard Accessories: 1245 lbs (565 kg)
Similar Product
8006330 (220V 3Ph)
Standard Tools:
Small Double ToolLarge Tire Bar
Small Tire Bar
Single G-clamp (for steel wheels)
