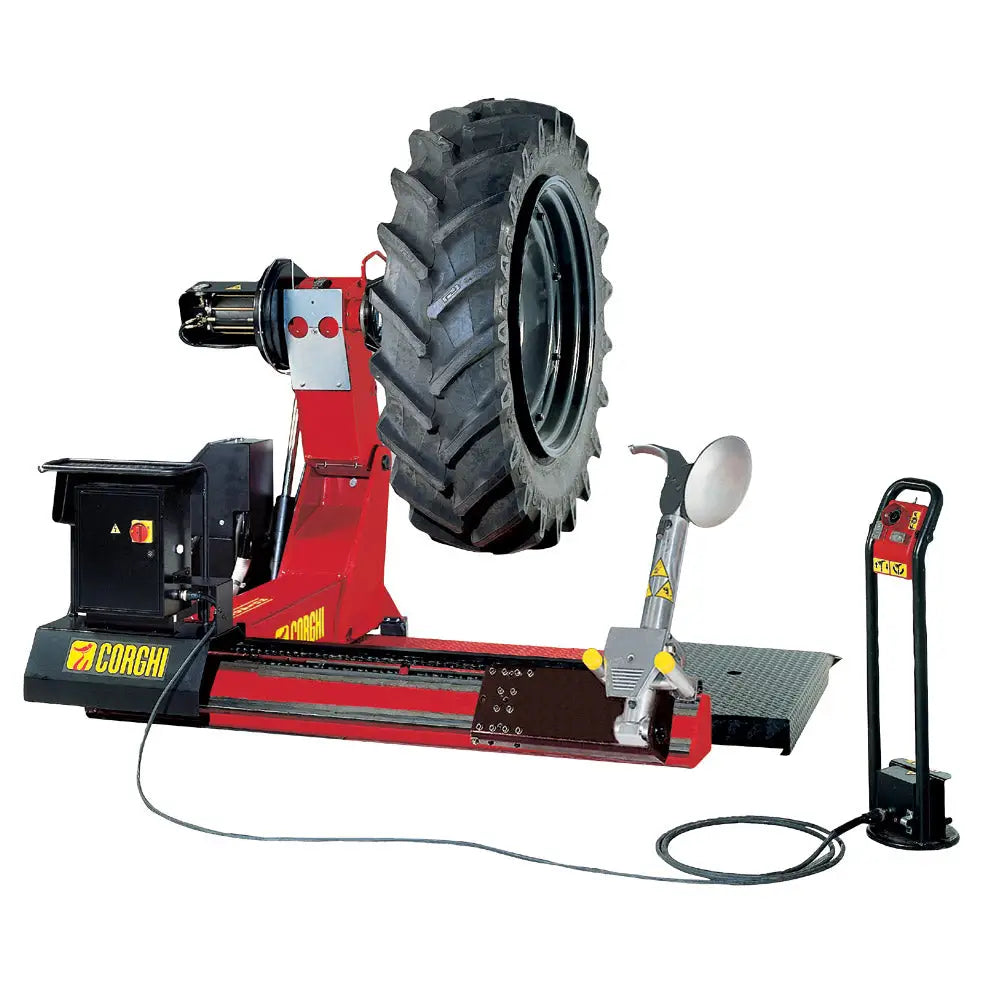

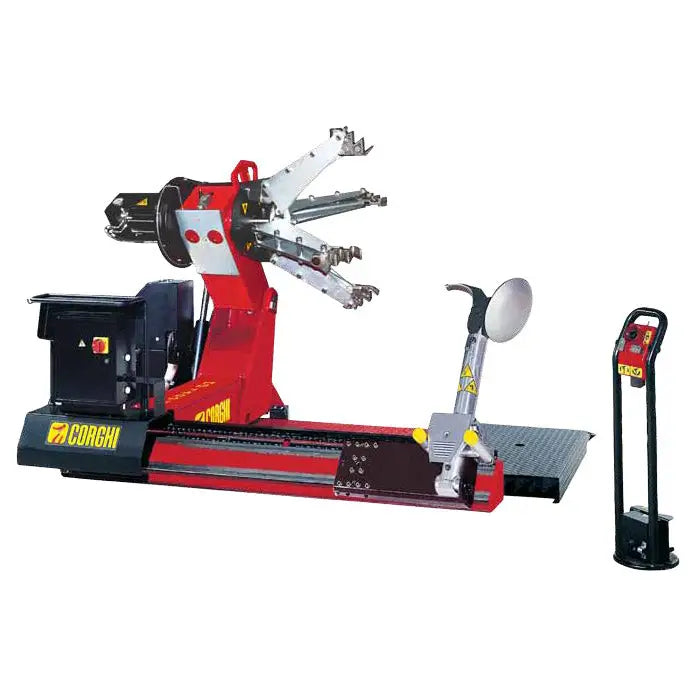

Corghi HD1400 E-EVO Heavy-Duty Semi-Automatic Tire Changer
The essence of solidity and reliability, without compromises. For use with a wide range of wheel. Capable of handling tire widths of up to 58in and a maximum wheel weight of 4189 lbs.
The HD1400E uses electric-hydraulic operation. The hydraulic power ensures top performance levels. The hydraulic power unit is mounted on the machine in order to minimize its size.
Corghi is the inventor and worldwide leader in the field of tire changers, and with the HD1400E the company is now able to guarantee ground-breaking levels of performance, reliability, and safety. It's ideal for industry specialists needing equipment designed for intensive use. The HD1400E is a semi-automatic tire changer suitable for mounting and demounting a wide range of wheels on vehicles ranging from trucks and agricultural machines to deforestation and earth-moving machinery.
Features:
- Wide Range of Wheel: Capable of handling tire widths of up to 58in. Corghi's continuous technological developments have allowed it to take advantage of the latest materials in order to increase the maximum wheel weight up to 4189 lbs.
- NEW 58in Spindle: New spindle is 4.7in longer. This new development is designed to meet the requirements of the latest tires on the market, which are becoming increasingly widespread. The spindle is capable of clamping wheels without central flanges of up to 38in without extensions, and up to 58in with extensions.
- START & STOP: The HD1400 features the START & STOP function, guaranteeing notable energy savings while the machine is not being used.
- Bead Breaker: The tool support is equipped with a bead breaker disc, which is mounted on self-lubricating bushings to ensure maximum smoothness and durability. The disc's particular design and working tilt are specifically designed to ensure optimal penetration between the rim edge and the bead of the tire. The external profile also prevents damage or punctures to the side of the tire.
- Tire Demounting Phase
Specs:
Max Tire Diameter: 98inMaximum Tire Width: 58in
Clamp capacity: 14in - 56in
Wheel Central Hole Min.: 4.3in
Max. Torque Delivery: 3688 ft/lbs
Bead Breaker Force: 6744 lbs
Max. Liftable Wheel Weight: 34189 lbs
Wheel Lifter Cylinder Load Capacity: 5511 lbs
Hydraulic Power Unit Motor: 3ph - 6.5 hp
Two-speed Gear Motor: 3ph - 2hp - 3hp
Power Supply: 230 V - 3 ph - 60 Hz
Weight: 2257 lbs
Ref No.
0-12100409/00
